This blog post describes a process for implementing an Orchex orchestration processor that logs to loggly, and how to call that processor from another processor.
Update 15.Dec.2025: After years of frustration with WordPress, I am finally abandoning this blog. The content will likely stay here for some time, but new content will appear here:
For background information about orchestration processors, see:
As with most processors that invoke web services, start with settings to avoid hard-coding (in this case, considering static JSON as code). In this example, I using one setting for the token and “hard-code” the domain, as the token is likely to change, but the domain is not, I’m kindof lazy, and it’s just a demo.
{
"description": "Loggly customer token",
"dontexportkey": false,
"dontexportvalue": false,
"encrypted": false,
"key": "demo-loggly-token",
"valueperenv": true,
"values": ["<redacted>"]
}
./json/settings/loggly/token.jsonNext, implement a template for processors that access loggly, although this is a bit overkill if we only have one such processor. As usual, I started by getting a curl to work, and then broke it down.
Because I would want to swap out vendors without changing processor identifiers, I would not key such a generic processor after the vendor, unless maybe I use multiple vendors or it would somehow otherwise make sense. But I also wouldn’t include demo in a processor key, and in this case, it’s helpful to indicate both aspects.
Also, async_execution should probably be true, because I wouldn’t want the orchestration process to have to wait for the logging HTTP request to complete before proceeding, especially if a single orchestration process uses it repeatedly. I’m currently battling with Rust over this, so ignoring it in this post for now.
{
"key": "demo-loggly-template",
"webapi": {
"protocol": {
"block_type": "literal",
"content": "https"
},
"domain": {
"block_type": "literal",
"content": "logs-01.loggly.com"
}
}
}
./processors/demo/loggly/template.jsonNext, the logging processor itself, which inherits from that template:
{
"key":"demo-loggly-log",
"inherits":"demo-loggly-template",
"async_execution": false,
"webapi": {
"method": {
"block_type": "literal",
"content": "POST"
},
"rootpath": {
"block_type": "js_inline",
"content": "result = '/inputs/' + get_setting('demo-loggly-token');"
}
}
}We can invoke this processor with curl.
time curl -X POST http://127.0.0.1:3030/processors/demo-loggly-log/invoke -H "Content-Type: application/json" -d '{"message": "Invoking demo-loggly-log from curl" }'
Performance isn’t great, though that’s mostly network round trip for the webservice API, which will basically disappear if we make the logging processor async.
We can use the invoke_processor() function to invoke this processor from JavaScript running in another processor. This example logs the orchestration context.
Possibly due to the quick_js JavaScript virtual machine currently in use, we can only pass one argument from JavaScript to a Rust callback, but since that argument is JSON, we can pass any number of values. The invoke_processor() function reserves the call_processor key to identify the processor to invoke.
{
"key":"demo-loggly-test",
"mainfunction": {
"block_type": "js_inline",
"content": "
result = JSON.parse(
invoke_processor(
JSON.stringify({'call_processor': 'demo-loggly-log', 'orchex_context': orchex_context })));
"
}
}
./json/processors/demo/loggly/test.jsonNote that this processor uses the loggly processor without inheriting from it or its template.
Note also that the invoke_processor() function does not register processor dependencies, making the invoked processor more reusable. Visualizations of the orchestration process may indicate processors invoked using this method.
time curl -X POST http://127.0.0.1:3030/processors/demo-loggly-test/invoke -H "Content-Type: application/json" -d '{"message": "Invoking demo-loggly-test from curl" }'

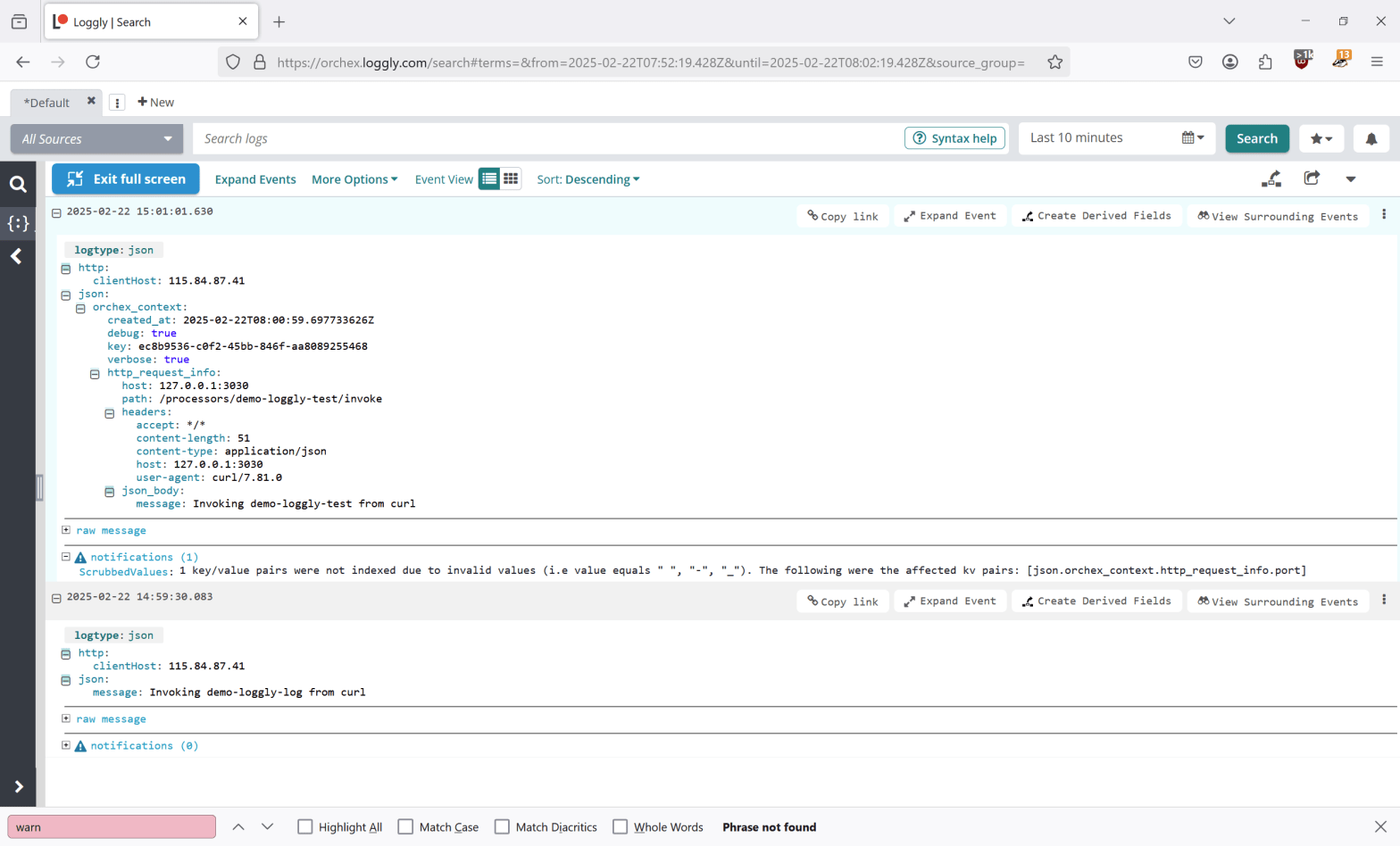

If you look closely, you can see that there’s a bug – port is coming through in context as part of host. We’ll fix that.
